Brand Name : | KeeTouch |
Model Number : | KAL-0156-6BP-ALC |
Certification : | FCC ,UL, CCC,CB, CE, RoHS |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 10000 Pieces per Month |
Delivery Time : | 7-15 work days |

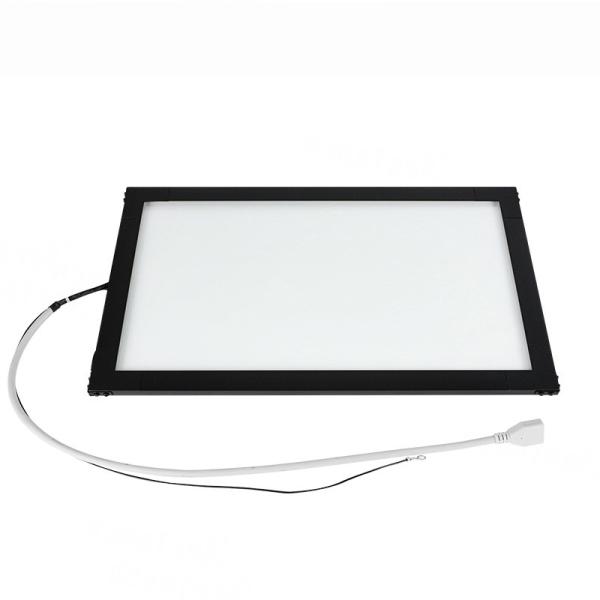

SAW Touch Screen Main Features
KeeTouch Surface Acoustic Wave (SAW) Touch Screen is developed by
our R&D team, with our own design and continuously updating the
most efficient touch screens to worldwide customers. The screen is
suitable for all types of display monitors with RS232 or USB
interface and they can be activated by finger, gloved hand, rubber
soft pen etc. With fast response time ≤10ms, it provides perfect
touch experience for users. Other sizes are available (7’’- 42’’).
SAW Touch Screen Specifications
Model No. | KAL-0156-6BP-ALC |
Touch Medium | Finger, gloved hand, rubber soft pen etc. |
Sizes | 15.6 Inch |
Resolution | 4096*4096, Z-axis 256 |
Touch Activation Force | <80g |
Controller | KCA-URO1L-R2G |
Controller Interface | USB & RS232 |
Response Time | ≤10ms |
Transmission | 90% |
Temperature | Operation Temp:-20℃ to +60℃ |
Storage Temp:-40℃ to +70℃ | |
Humidity | 40℃@90%RH, non-condensing |
Operation Altitude | 3000m |
Electrostatic Protection | Per EN 61000-4-2, 1995 : (8 kV air / 4 kV contact discharges). |
Agency Approval | FCC,CE,UL,RoHS |
Surface Durability | Optical glass surface, Mohs' hardness rating: 7. |
Life Performance | More than 50 million touches in one location. |
SAW Touch Screen Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW Touch Screen?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW Touch Screen?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
![]() |
